This is a big print and project.

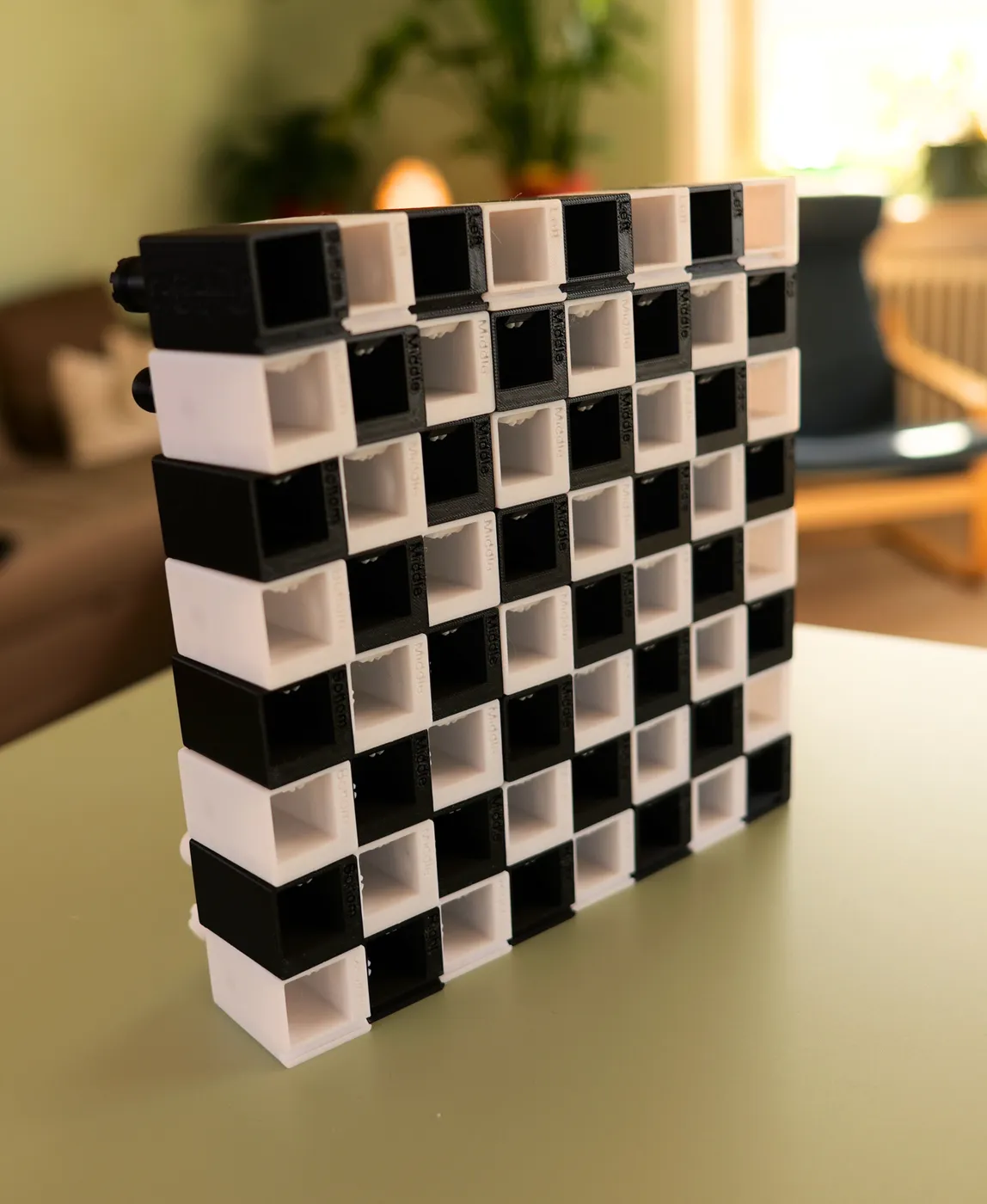

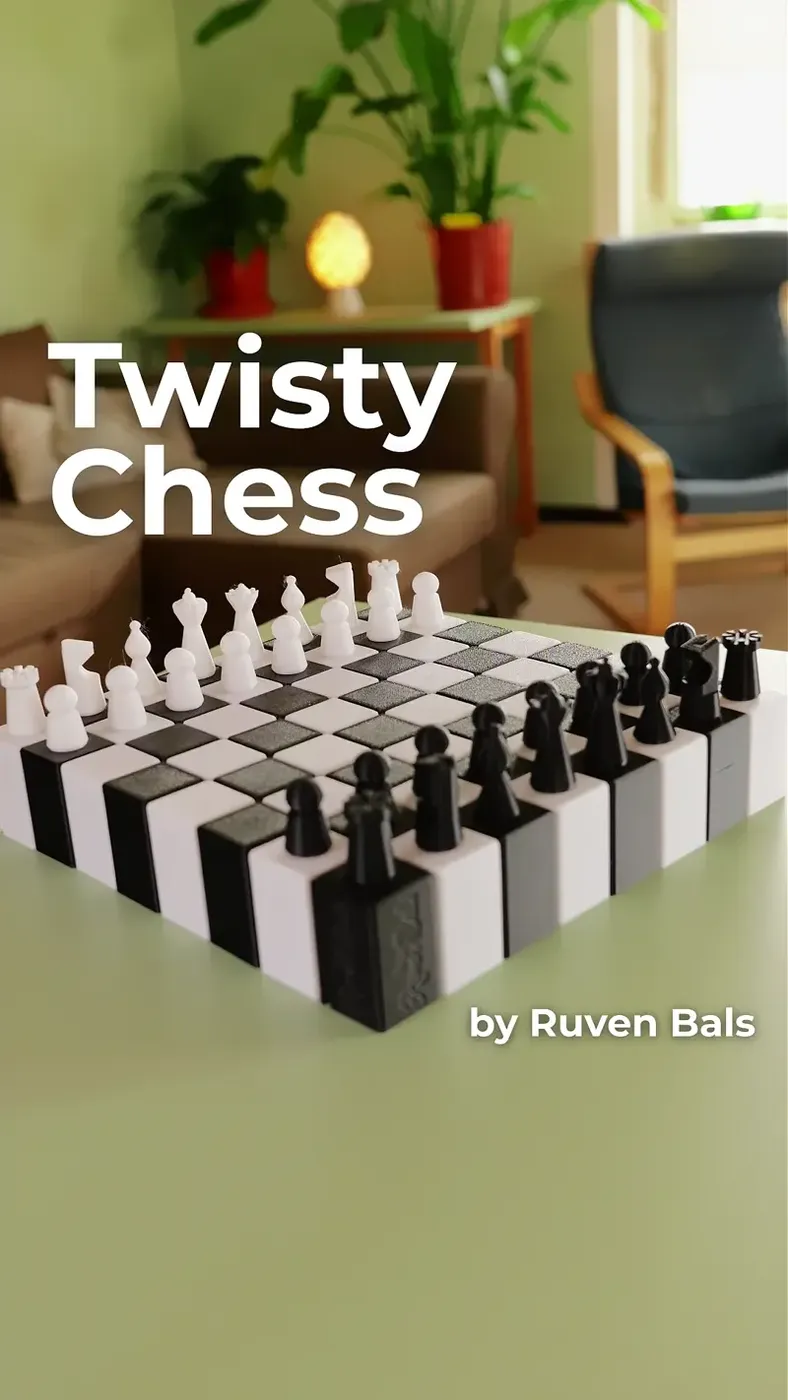

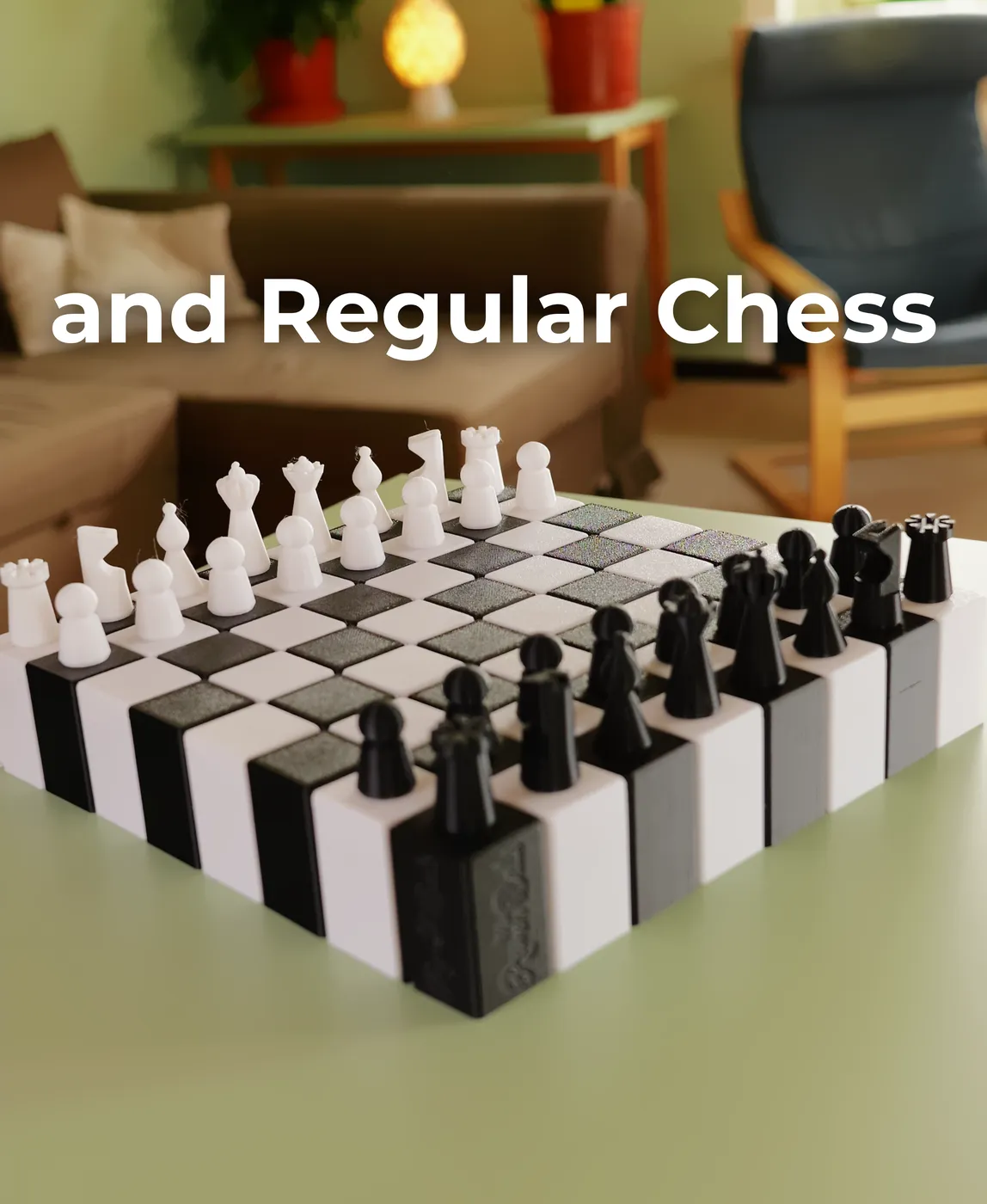

This Chess set can transform into an isometric chess board. You can also play hidden and of course normal chess on it.
I designed it to be printable on any printer of any size, you don't even need a multicolor printer.

Watch my Video about the Project to get all the details.

Watch the video

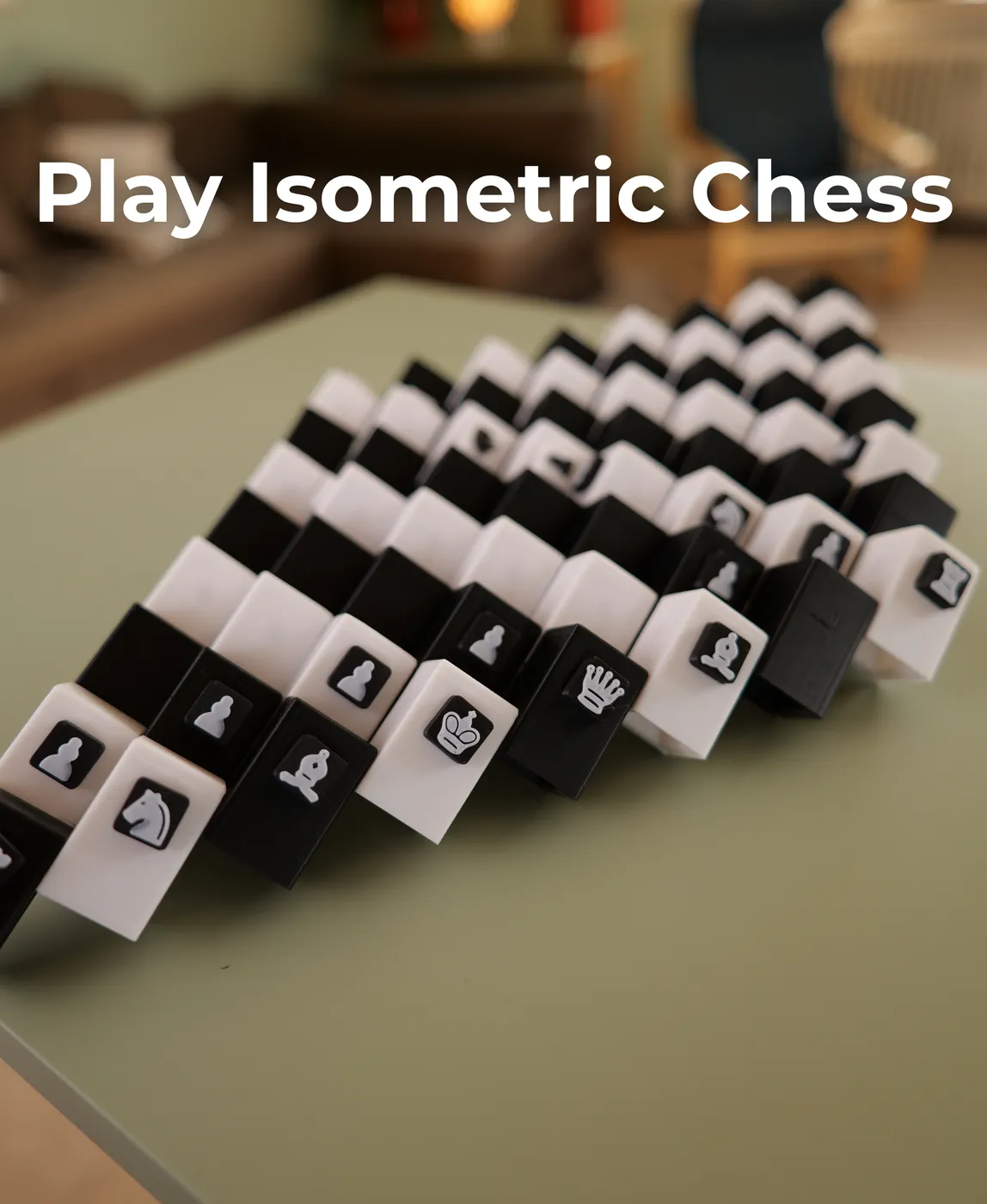

Isometric Chess Rules: Watch the video

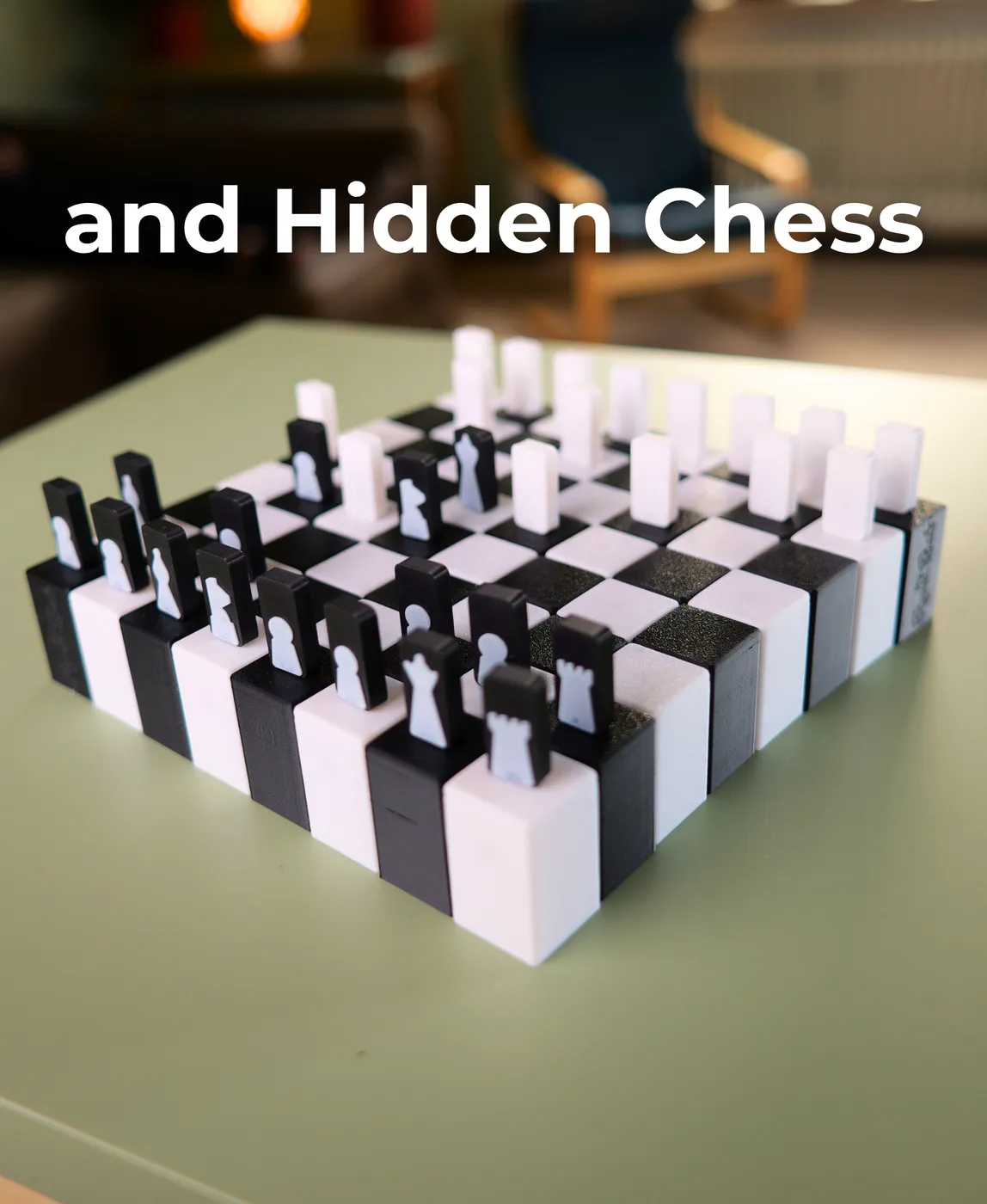

Hidden Chess Rules: Watch the video
I didn't invent these chess variations, full credit goes to the creators of these videos.

You need

Magnets buy 300 5x3 mm. You can get them cheap on Amazon.

Parts in Black

18 Board middle Pieces
3 Board Left Pieces
3 Board Right Pieces
3 Board Top Pieces
3 Board Bottom Pieces
1 Board Bottom Left Piece
1 Board Top Right Piece

All Normal Chess Pieces in Black

All Isometric Chess Pieces in Black

All hidden Chess Pieces in Black

Parts in White

18 Board middle Pieces
3 Board Left Pieces
3 Board Right Pieces
3 Board Top Pieces
3 Board Bottom Pieces
1 Board Bottom Right Piece
1 Board Top Left Piece

All Normal Chess Pieces in Black

All Isometric Chess Pieces in Black

All hidden Chess Pieces in Black

Any Color

The Seal and the Connectors can be printed in any color you want.

Print Settings

Everything can be printed with standard settings and no supports.

Assembly

Watch my Video

Technical Data

One Board needs roughly 1.3 kg of Filament but keep in mind we are printing 2 colors.
The print time is roughly 2 days.
I used Sunlu Meta PLA in black and white to printe everything.
